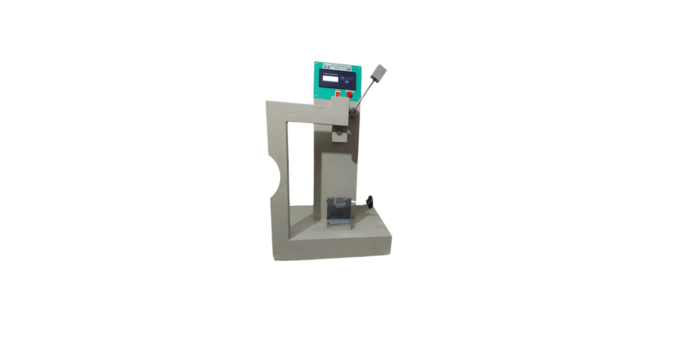

DIGITAL IZOD / CHARPY TESTER
As per ASTM D - 256 & ASTM D 6110 as well as ISO 179 and ISO 180 to test
impact resistance of plastics by Izod and Charpy method respectively. The test indicates the energy required to break specimen by axial impact.
Specification :
• Capacity : Up to 25.00 Joules.
• Release angle of pendulum: 150 degree.
• Range of four scales : 0-2.71 Joules, 0-5.42 Joules, 0-10.84 Joules, 0-21.68 Joules and 0-25.00 Joules.
• Minimum resolution on scale : 0.02 Joule, 0.05 Joule,
0.1 Joule, 0.2 Joule and 0.2 Joule respectively.
• Paint : Powder coated.
• Power : 230 Volts, 50 Hz, single phase.
• Direct display through microcontroller : Impact strength in joules/meter and kg- cm/cm.
CERTIFICATION:CALIBRATION CERTIFICATE WITH NABL TRACEBILITY FOR 1 YEAR.
Warranty: 1 year warranty.
Features: IZOD/CHARPY Detailed computer software for analysis of behaboiur of specimen is very easy to understand with the help of software. Graphical view and enegy ,angle of hammered striked with sample all information is available in software with .print ,share option.( software is optional )
